Balluff sensor

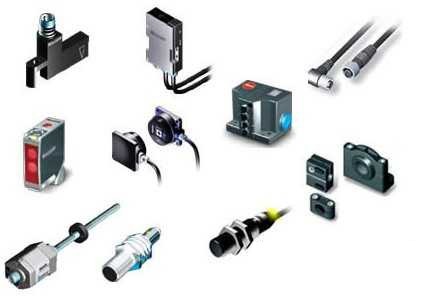

Balluff main products

1、Target detection series (proximity switch, magnetic switch, capacitive switch, pressure switch, photoelectric switch, stroke switch, limit switch, etc.).
2、Linear position detection series (inductive linear displacement sensor, inductive ranging sensor, magnetic inductive displacement sensor, photoelectric ranging sensor, etc.).
3、Industrial identification system (BIS L, C, M, S, visual sensor).
4、Industrial network and connection (distribution box, bus, IO-Link, etc.).
5、Accessories series (fastener, installation system).

Balluff sensor

At present, inductance sensors are widely used in industrial field. Compared with mechanical switches, inductive sensors have perfect preconditions: contactless and wear-free working mode and high switching frequency and switching accuracy. In addition, they are resistant to dust and moisture. Inductive sensors can detect all metals without contact.

Main technical parameters of Balluff sensor：

Common appearance: cylindrical, ring sensor, tubular sensor, slot sensor, rectangle.
Diameter ：M5、M8、M12、M18、M30
Texture of material ：Metals and plastics
Detection range  ：2 mm、4 mm、8 mm、15 mm、60 mm、70 mm、120 mm
Access mode: cable, cable with connector, connector and terminal.

Baruf displacement sensor

Schematic diagram of Balluff displacement sensor

Balluff displacement sensor has no sliding contact, is not affected by dust and other non-metallic factors, and low power consumption, long life, can be used in a variety of adverse conditions. Displacement sensor is mainly applied to the intelligent control of analog equipment in automatic equipment production line. Displacement is a quantity related to the movement of the position of the object in the process of motion. The measurement of displacement involves a wide range of methods. Small displacement is usually measured by strain type, inductance type, differential transformer type, eddy current type, Hall sensor, and large displacement is usually measured by induction synchronizer, grating, capacitive grating, magnetic grating and other sensing technology. The grating sensor is widely used in machine tools, measuring instruments and other industries because of its advantages of easy digitization, high precision (the highest resolution can reach nanometer level at present), strong anti-interference ability, no man-made reading error, easy installation and reliable use.

Principle of Balluff displacement sensor

The function of Balluff displacement sensor is to convert linear mechanical displacement into electrical signal. In order to achieve this effect, the variable resistance slideway is usually fixed at the fixed position of the sensor, and the different resistance values are measured by the displacement of the slideway on the slideway. The sensor slideway is connected to a steady-state DC voltage, allowing a small current to flow through the microampere, and the voltage between the slider and the start is proportional to the length of the slider movement. Using the sensor as a divider can minimize the requirement for the accuracy of the total resistance of the slideway, because the resistance variation caused by the temperature change will not affect the measurement results.
