Mts sensor

The main products of MTS in the US are

Mts displacement sensor, Mts sensor, Mts level meter, Mts connector, Mts magnetic ring, Mts magnetostrictive displacement sensor

Mts Magnetostrictive Displacement Sensor is suitable for high temperature, high voltage and strong oscillation. Its absolute output solves the problem of power off and return to zero. Because the sensitive elements are non-contact and wear-free, the average time of trouble-free is 23 years. MTS System Company is the first company in the world to develop magnetism. The company of telescopic measurement technology.

Us Mts displacement sensor	Mts magnetostrictive displacement sensor in USA
American Mts connector	American Mts magnetic rings
Us Mts liquid level gauge

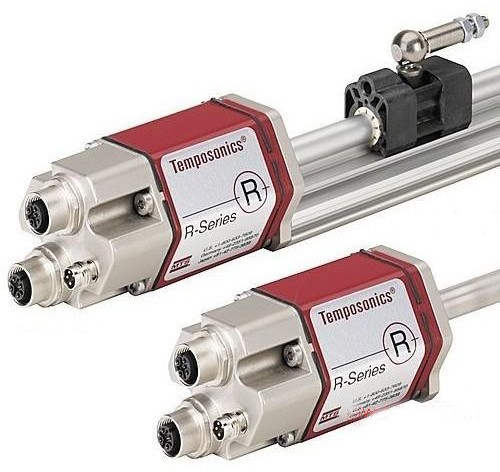

American Mts displacement sensor Mts sensor three series

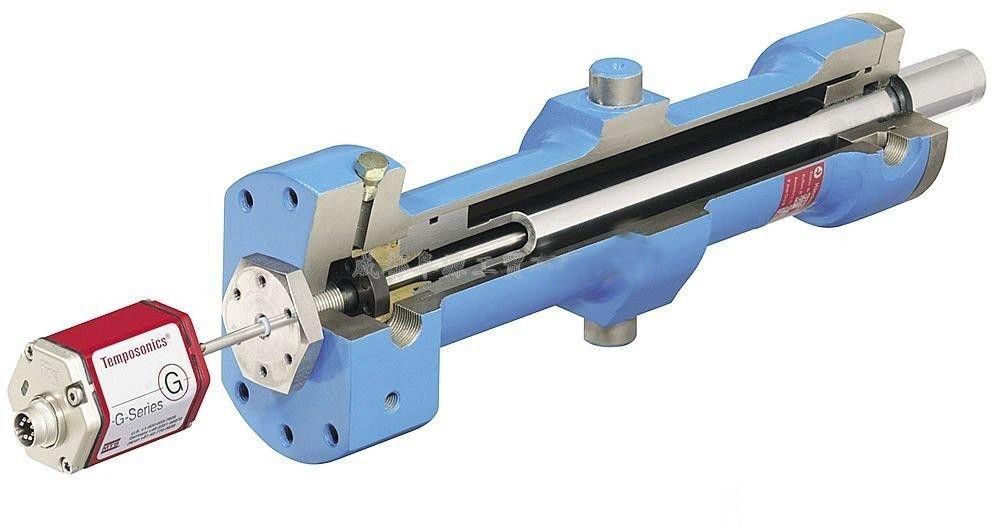

A smart sensor series with high accuracy, speed and synchronous position control. Suitable for high mechanical automation control applications. Output modes include: analog voltage and current, SSI synchronous serial digital, DeviceNet, CANbus and Ethernet assemblies. It can also provide position and speed dual output, as well as multiple position synchronous measurements.	A programmable and built-in diagnostic sensor series. Suitable for general mechanical automation applications, output modes are: analog voltage and current, digital Start / Stop and PWM pulse. The G- series is nearly 100% compatible with the old T2 and L- sensors. There is absolutely no problem in replacing old models.	An economical sensor series provides users with simple and direct position feedback signal, saves costs and improves production efficiency. The output modes are analog voltage and current, digital Start/Stop and PWM pulse, etc. The E- series provides a wide range of installation methods, which are most suitable for machine tool industry.

The output signal of the Mts displacement sensor is absolute value, so even if the power supply is interrupted, it will not cause problems to the signal reception, let alone return to zero. Finally, because the sensor is non-contact, even if the measurement process is repeated repeatedly, it will not cause any wear and tear to the sensor. The average fault-free time of the magnetostrictive sensor is 23 years

Mts magnetostrictive displacement sensor and its function

The high precision and reliability of Mts magnetostrictive displacement sensor have been verified by thousands of application cases. Sensors use non-contact technology to monitor the displacement of the active magnet, because the magnet and the sensor do not have direct contact, so the sensor in extremely harsh industrial environment, such as susceptible to oil stains, solutions, dust or other pollution, does not pose a problem. In addition, the sensor can withstand high temperature, high pressure and high oscillation environment.

Introduction and function of Mts magnetic ring and joint

Absorbing magnetic ring, also known as ferrite magnetic ring, referred to as magnetic ring. It is a common anti-interference element in electronic circuits, which has a good suppression of high-frequency noise. It is generally made of ferrite (Mn-Zn). The loop has different impedance characteristics at different frequencies. Generally, the impedance is very small at low frequencies. The impedance of the loop increases sharply when the signal frequency increases.
A common-mode choke is formed by passing the entire cable through a ferrite magnetic ring, and the cable can be wound several turns above the magnetic ring as needed. The more turns, the better the interference suppression effect on the lower frequency, but the weaker the noise suppression on the higher frequency. In practical engineering, the number of turns of magnetic rings should be adjusted according to the frequency characteristics of interference currents. Usually, when the frequency band of interference signal is wide, two magnetic rings can be set on the cable, each with different turns, so that both high-frequency interference and low-frequency interference can be suppressed.

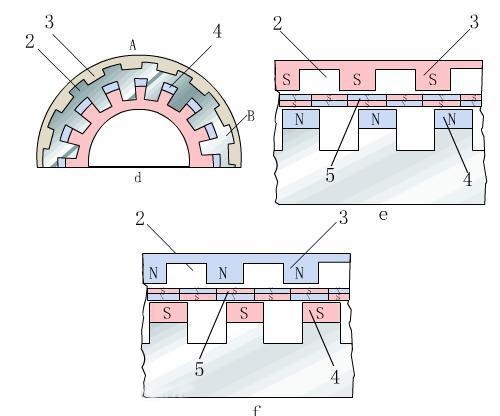

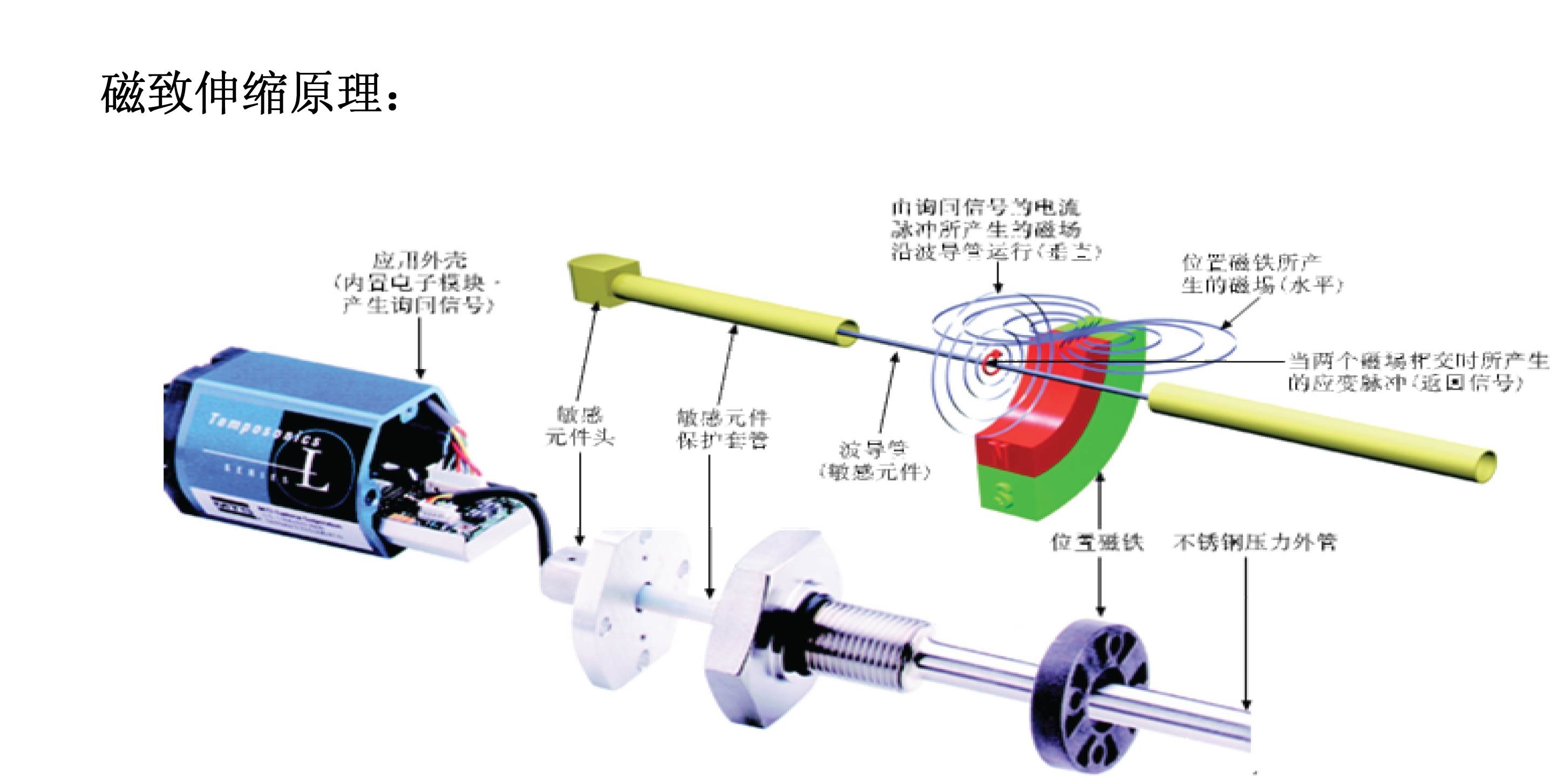

Principle and schematic diagram of Mts magnetic loop

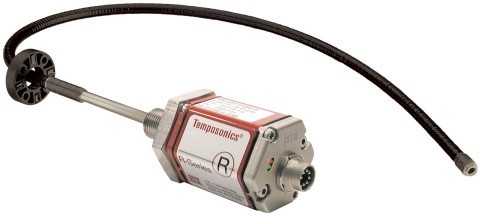

The US Mts displacement sensor is named Temposonics before. It uses non-contact technology to monitor the displacement of active magnets. Because the magnet has no direct contact with the sensor, the sensor can be used in extremely harsh industrial environment, never causing loss. The output signal of the sensor itself is absolute value, even if the power supply is suddenly interrupted, it will not affect the data, let alone adjust the zero position. Its advantage is permanent guarantee of repeatability and resolution. It is the leader of the market.
