Kawasaki arc welding robot

Time：2017-01-23　Views：500

Kawasaki Industrial Robot. Products include: palletizing robots, arc welding robots, bending robots and so on. Kawasaki robots are one of the company's main products, which are popular in European, American and Asian markets. Shanghai Guilun distributes Kawasaki Robot for ten years. We are your trusted partner to provide customers with economical and affordable product solutions based on their actual situation.+86-13714646179

FeaturesTechnologyUse sample
Ordering Hotline
Mobile(wechat whatsapp): 86-13714646179

Kawasaki arc welding robot

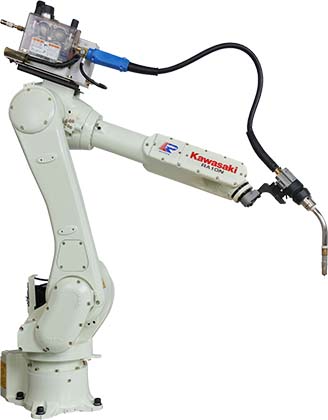

RA010N Kawasaki Arc Welding Robot

Skillful and Flexible Arc Welding Robot
R series robots set benchmarks for all small and medium-sized industrial robots. Compact design and industry-leading speed, extension distance and working range make R-series robots suitable for a wide range of applications in many different industries.

Overview of RA010N:
load	10 kg
Axle number	6
Extension distance	1,450 mm
Repeatability	±0.06 mm

Specification of BA006N
type	Multi-joint Robot
Freedom	6
Maximum load (kg)	6
Maximum extension distance (mm)	1,445
Location repeatability (mm) ✽1	±0.06
Range of motion (°)	Arm rotation (JT1)	±165
	Arms around (JT2)	+150 - −90
	Arms up and down (JT3)	+45 - −175
	Wrist rotation (JT4)	±180
	Wrist Flexion (JT5)	±135
	Wrist torsion (JT6)	±360
Maximum speed (°/s)	Arm rotation (JT1)	240
	Arms around (JT2)	240
	Arms up and down (JT3)	220
	Wrist rotation (JT4)	430
	Wrist Flexion (JT5)	430
	Wrist torsion (JT6)	650
Inertia (N•m)	Wrist rotation (JT4)	12
	Wrist Flexion (JT5)	12
	Wrist torsion (JT6)	3.75
Moment of inertia (kg•m2)	Wrist rotation (JT4)	0.4
	Wrist Flexion (JT5)	0.4
	Wrist torsion (JT6)	0.07
quality (kg)	150
body color	Munsell 10GY9/1 Equivalent
install	Ground, suspension
environment condition	ambient temperature(°C)	0 - 45
environment condition	relative humidity(%)	35 - 85 (Non Condensing)
Power demand (kVA) ✽2	2.0
Protection level	IP65
control cabinet	Model for North America	E01
	Model for Europe
	Model for Japan-Asia

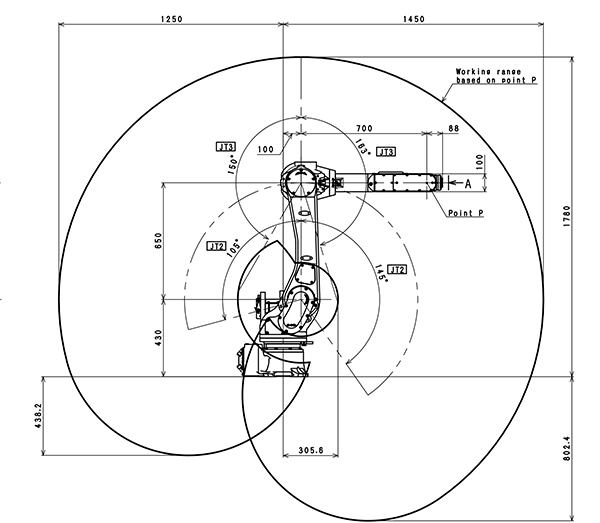

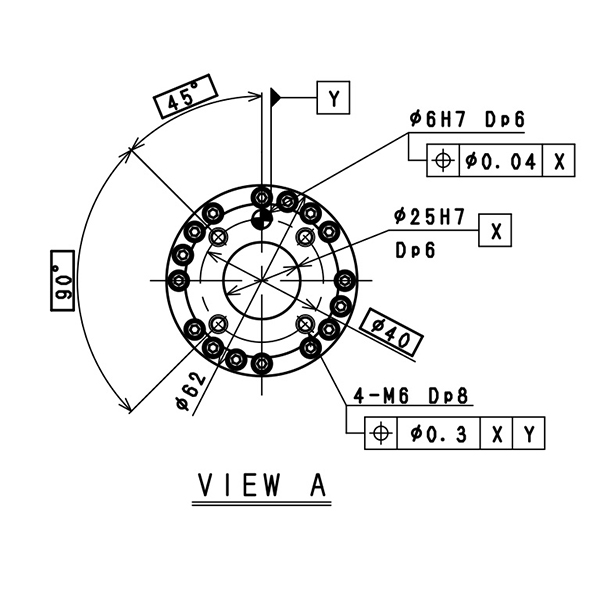

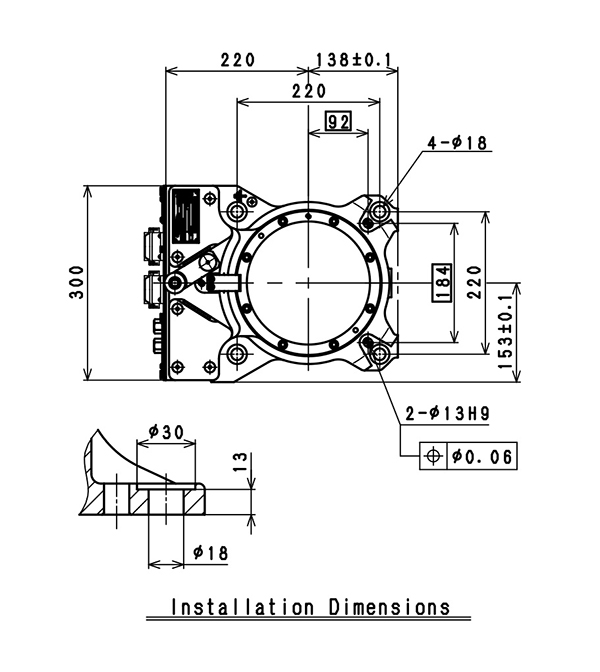

Motion Range and Size

The dimensions shown in the figure are in millimetres.（mm）
