Coke oven automation solution
Time:2012-11-06 Views:551
In the process of coal blending and coking production, it is necessary to mix various clean coal such as fat coal, gas coal, lean coal, coking coal, and lean coal in an appropriate proportion to form a mixed coal, which is called an automatic coal blending process
In the process of coal blending and coking production, it is necessary to mix various clean coal such as fat coal, gas coal, lean coal, coking coal, and lean coal in an appropriate proportion to form a mixed coal, which is called an automatic coal blending process. It is an important link in the entire coking production, and has great significance for producing high-quality coke, making rational use of coal resources, and controlling production costs
Coke Oven Automation Solution
The coking automation process mainly includes coke oven body control, coal blending control, coke screening control, gas purification and recovery, and dust removal system control
★Realistic display of operation links and site of coke oven automation
|

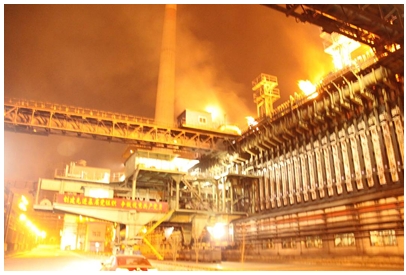

Field operation scenario
|
|

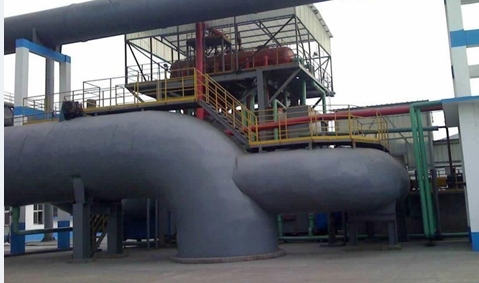

90Waste heat recovery from 10000 ton coking plant
|
|

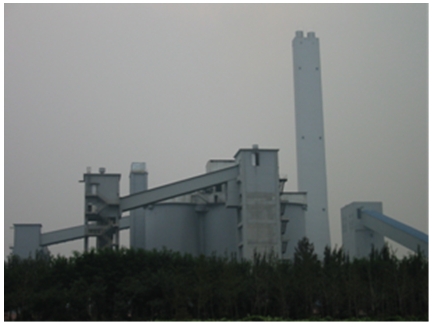

Live shot of coking plant location
|
The purpose of coking automation is to ensure the four main issues of coking operation:
①Realize automatic closed-loop control of the main parameters of the system, such as the pressure of the main return gas pipe and the pressure of the main return gas pipe
② All controls have a manual/dynamic switching function, which enables undisturbed switching in closed-loop control
③ Data calculation, statistics, and storage functions for instantaneous and cumulative economic indicators such as shift output, coking coal input, coke output, and external gas supply
④ Full Chinese culture operation interface. Instrument control systems and electrical control systems are typically completed by DCS or PLC。
