Converter Automation Solution
Time:2012-11-06 Views:550
Steelmaking is the process of removing the carbon content in pig iron to a specified range and reducing or increasing the content of other elements to a specified range according to the requirements of the type of steel being made
Steelmaking is the process of removing the carbon content in pig iron to a specified range and reducing or increasing the content of other elements to a specified range according to the requirements of the type of steel being made. Briefly speaking, it is a process of oxidizing pig iron to reduce carbon, remove sulfur and phosphorus, and adjust the silicon and manganese content. Common methods include open hearth and converter oxygen blowing steelmaking
Converter steelmaking: Pour molten iron into the converter, add a certain amount of scrap steel and steelmaking pig iron to adjust the composition and reduce the temperature, and add a certain amount of quicklime for desulfurization. After oxygen blowing and decarbonization, add a carburizing agent and alloy material to adjust the composition after discharging.
★ Realistic display of some operation areas and links
|
Site operation area
|
|

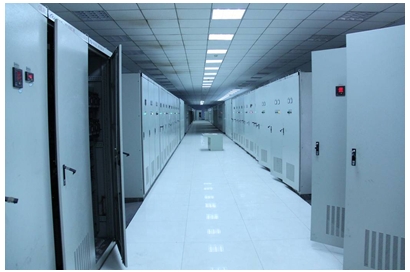

MCC Room - Motor Control Center
|
|

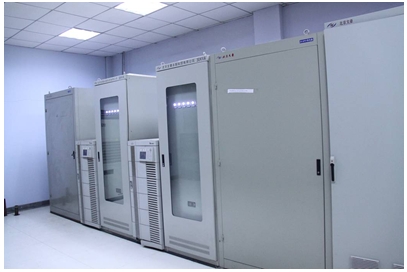

UPS——Uninterruptible control power supply
|
|

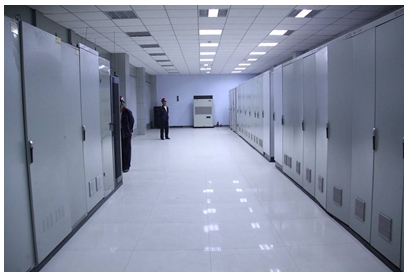

Electricity Distribution Room
|
|

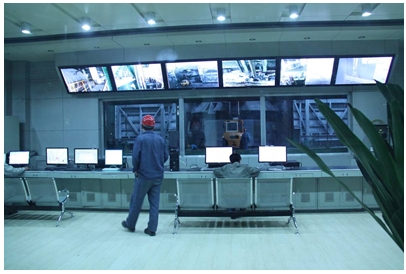

monitoring center
|
The converter steelmaking automation system consists of 5 sets of PLCs (1PLC-1 # converter tilting, oxygen lance system, 2PLC vaporization cooling system, 3PLC OG dust removal 1 # system, 4PLC OG dust removal 2 # system, 5PLC circulating water system), 7 sets of upper computers (HM1-converter local operation station, HM2-converter charging operation station, HM3-converter vaporization operation station, HM4-1 # fan operation station, HM5-2 # fan operation station, HM6-water treatment 1 # operation station, HM7-water treatment 2 # operation station), 1 set of engineer stations。
