The textile industry is also an important application object of real-world automation solutions. Here is a brief introduction to an example application of a production line solution for the textile industry. The entire production line
The textile industry is also an important application object of real-world automation solutions. Here is a brief introduction to an example application of a production line solution for the textile industry. The entire production line uses 12 PLCs, 20 DEVICENET modules, 60 frequency converters, 54 temperature display control points, 14 temperature display points, and a configuration system. Among them, there are 368 fault alarm points, 258 data points, and 142 control points. A three-layer network is adopted as a whole, with the top layer TCPIP (for monitoring), the middle layer DEVICENET (for data), and the lower layer PLCLINK (for data and control)。
The corresponding products for each link are as follows:
|

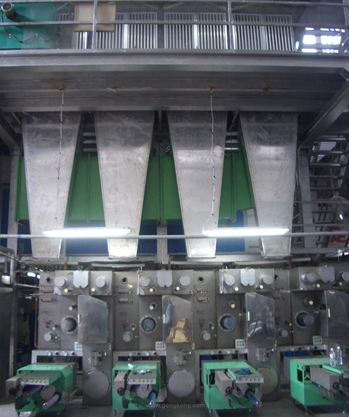

Pre production line operation status
|
|

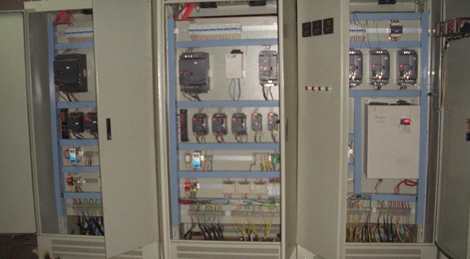

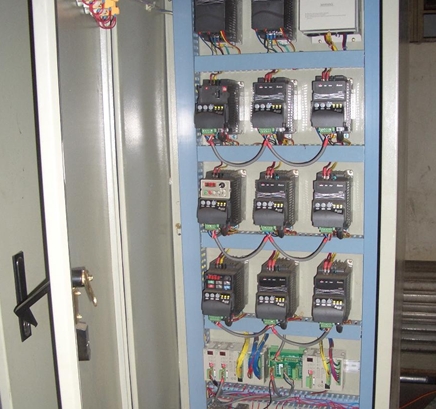

Electric cabinet box
|
|

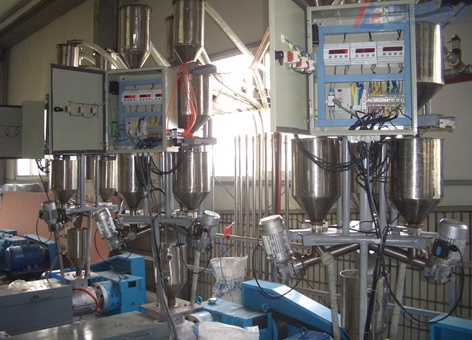

Screw and color matching, fully automatic feeding system
|
|
Weighing and batching control cabinet
|
|

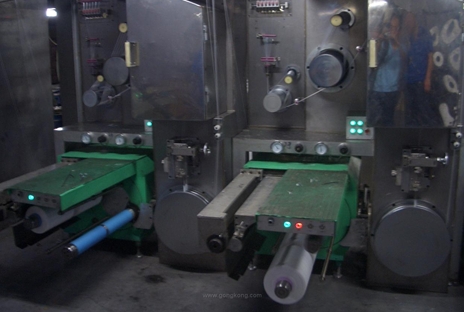

Commissioning status
|
|

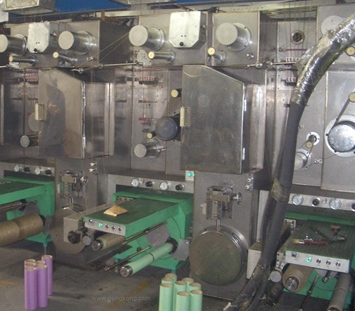

Product production process
|
|

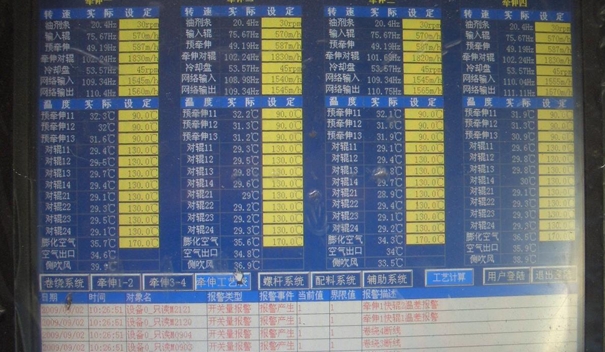

Equipment status monitoring
|
|

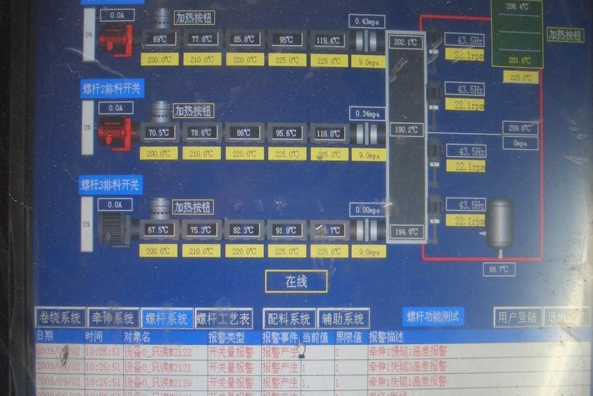

Operation link monitoring
|
|

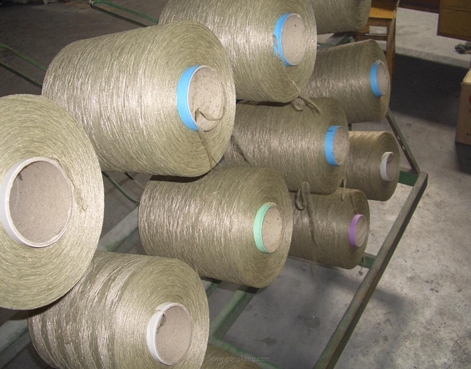

Display of finished products
|
