Application of Pepperl+Fuchs Encoder in Elevator Industry
Time:2012-11-09 Views:550
The P+F multiplier encoder can be used to measure rotational speed, acceleration, position, and direction. P+F Pepperl Plus Fuchs incremental shaft sleeve encoder series is widely used for automatic control
The P+F multiplier encoder can be used to measure rotational speed, acceleration, position, and direction. The P+F Pepperl Fuchs incremental shaft sleeve encoder series is widely used in automatic control, automatic measurement, computing technology, and other fields, especially in the numerical control machine tool, lifting machinery, and elevator industries. This product has good mechanical damage resistance and can withstand high radial and axial loads on the shaft. Due to its flexible mechanical structure and electrical circuit design, it can provide multiple connection methods and can be used in conjunction with all host computer products. The plate spring connection and shaft sleeve structure are more convenient to install and save space, making the application of the encoder more compact。
Let's witness the application of the P+F encoder purchased by our cooperative customers in the elevator industry
Encoders can be used in a large number of mechanical engineering industries, such as material handling, logistics, and packaging industries. In the field of industrial automation, the P+F multiplier encoder can be used to measure angles, positions, velocities, and angular velocities. By using racks, measuring wheels, and constant force opening meters, we can measure the motion position of straight lines. Rotary encoders can convert mechanical inputs into electrical signals that can be processed by counters, tachometers, programmable logic controllers (such as PLCs), and industrial computers.
There are two types of elevators: escalators and elevators, both of which use encoders, which are mainly matched with traction machines; The encoder moves synchronously with the traction machine shaft, and then feeds back the signal to the control unit。
|
|
An encoder is installed in the elevator
|

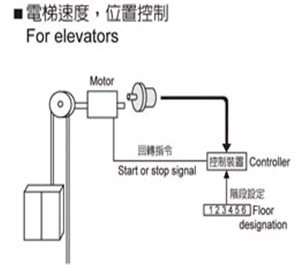

Schematic diagram of encoder working in elevator
|

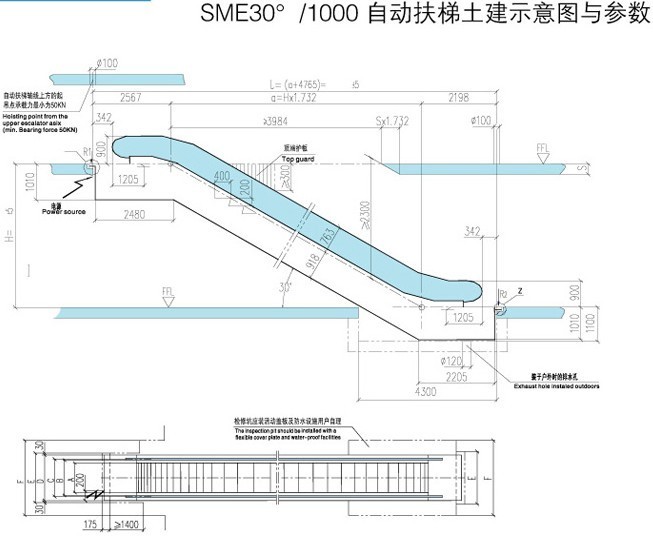

Design drawing and relevant parameters of automatic elevator
The elevator industry is a widely used type of encoder. P+F rotary encoders are available in both absolute and incremental forms, and are widely used in many fields. In our company Shanghai Guilun, P+F Beijiafu has always been our main brand. In the past ten years, there have been countless customers serving P+F Plus Four, and some encoder users include Baoshan Iron and Steel Co., Ltd., Jiangnan Shipbuilding Co., Ltd., Maanshan Iron and Steel Group, Wuhan Shougang Group, and COFCO Engineering Technology Co., Ltd。
