Robot Grinding and Deburring Workstation
Time:2017-04-24 Views:550
Using the most advanced cutting software and machining force control technology, as well as a complete range of configurations such as spindles, tool libraries, and turntables, it can replace manual and deburring machine tools and equipment for automatic polishing and deburring of castings, sheet metal parts, sanitary ware, computer notebooks, mobile phones, and other housings
Using the most advanced cutting software and machining force control technology, as well as a complete range of configurations such as spindles, tool libraries, and turntables, it can replace manual and deburring machine tools and equipment for automatic polishing and deburring of castings, sheet metal parts, sanitary ware, computer notebooks, mobile phones, and other housings. Robotic grinding automation systems quickly and effectively remove excess material from the surfaces of machined parts and products。
No matter what industry, if there is a grinding process in batch production, it cannot be done without automated equipment. The non-standard operation of the grinding process and the flexible requirements for grinding actions have become the technical obstacles to universal grinding machines. Combining a grinding machine and a robot into a single robotic grinding system or a complete robotic grinding equipment, assisted by transmission lines and corresponding fixture technology, has developed a complete automatic production line for grinding processes, which can efficiently complete automated grinding processes for non-standard parts.
Precise polishing of parts made of different materials is a science in itself. It requires manufacturers to equip themselves with automated grinding machines, grinding equipment, and production lines, expertise in the grinding process, appropriate grinding techniques, and the correct grinding process
[Application characteristics of robot polishing and deburring]
1. Deburring is the removal of material used for photographing metal parts that have burrs, sharp edges, or fins.
The six-axis deburring robot drives the milling cutter to be able to remove the material opening and mold closing line on the surface of the casting flexibly, quickly, and accurately from any angle and position around and above the casting, just like a file held by a human hand. The burr inside the deep hole and the hole that should be penetrated and covered by aluminum sheet can be milled and sorted out.
This type of robot is essentially a dedicated six-axis linkage machining center, but it also has the characteristics of fast and flexible robots, and is a robot processing equipment. The corresponding robot structure and tooling are designed according to different deburring workpiece, and the deburring efficiency of applying this type of robot is 4 to 6 times higher than that of manual work.

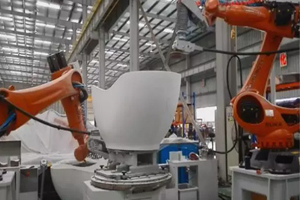

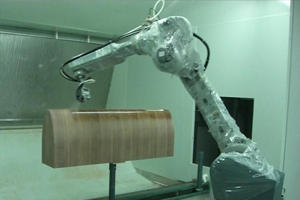

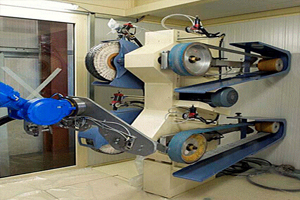

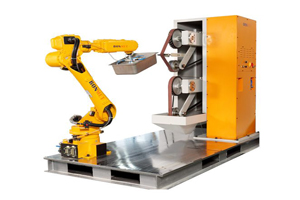

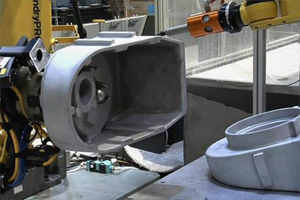

Partial application diagram of polishing robot in the entire production process
