Application of Robot Cutting
Time:2017-04-24 Views:550
The cutting robot consists of a robot body, a computer control system, a teaching box, and a spot welding system. In order to comply with the work requirements of the Linggou calculation, all electric welding robots choose the basic design of articulated industrial robots
The cutting robot consists of a robot body, a computer control system, a teaching box, and a spot welding system. In order to comply with the work requirements of flexible welding, the basic design of a joint type industrial robot is generally used for electric welding robots, which generally has six degrees of freedom: waist rotation, large arm rotation, small arm rotation, wrist rotation, wrist swing, and wrist twist
The cutting robot performs spot welding tasks according to the actions, sequences, and parameters defined by the teaching schedule. The process is fully automated, and has an interface for communicating with external devices. Through this interface, it can take over the control calls of the upper level master control and the dotting computer to work
[Robot cutting features]
1. Extremely high repetitive positioning accuracy
2. It has the function of temporary stop and automatic recovery of regeneration.
3. It can be directly connected to a display, mouse, and keyboard, facilitating the reading and writing of programs. The system can be updated at any time.
4. The powerful 80% high temporary loading rate enables the system to perform all-weather production cutting operations even in the worst environments.
The design of dedicated software enables the system to increase load duration and improve operational performance in many applications, such as cutting thin materials or pipes.

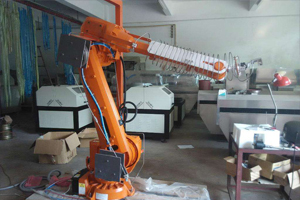

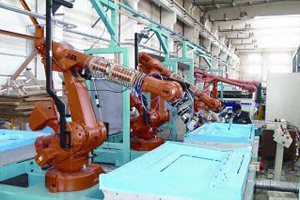

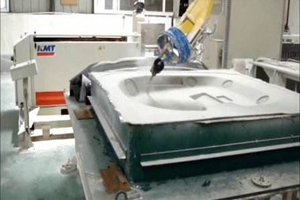

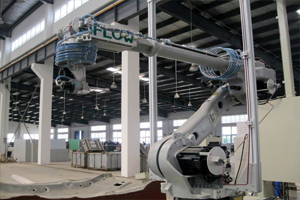

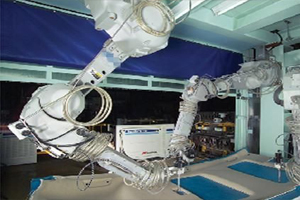

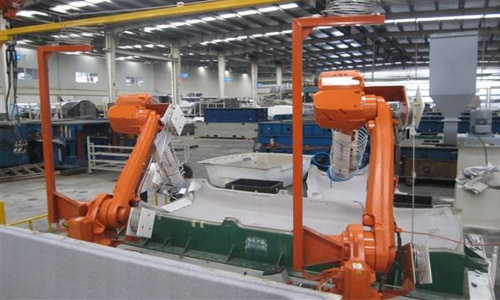

Partial application diagram of cutting robot in the entire production process
